draco vario SDI

Draco SDI 扩展器可以在SDI视频和数字视频信号之间进行组合和转换

将KVM与SDI世界连接

将KVM与SDI世界连接

Draco vario SDI (486系列)

随着Draco SDI扩展器的引入,现在可以在SDI视频和数字视频信号之间进行组合和转换。输入SDI CPU扩展器的SDI视频信号(高达3G-SDI)可直接或通过Draco tera KVM矩阵切换器提供给KVM CON单元,再连接到DVI、HDMI或DisplayPort显示器。SDI CON还能够转换数字视频信号,以便在SDI显示器上显示。SDI扩展器中包括视频缩放和逐行扫描功能,可根据需要在720p50 / 60或1080i50 / 60 SDI视频流和数字格式(包括1080p,1600×900或1920×1080)之间进行转换。这样可以确保使用合适的视频分辨率来适合所连接的显示器。

为了获得最大的应用灵活性,SDI扩展模块可以配备两个同轴SFP模块,每个模块有两个通道。SFP模块适用于双输入和双输出配置。

额外的环出使SDI信号可以传递到附加的SDI设备,同时输入到扩展器中进行KVM分配。

产品特色

产品特色

Draco vario SDI (486系列)
  • 2端口架构(例如用于双头)
  • HD-,3GA-,3GB-SDI输入分辨率(720p50 / 60、1080i50 / 60、1080p50 / 60,可根据要求提供其他分辨率)
  • 集成缩放器(CON和CPU)
  • 可扩展的输出分辨率(例如720p,1600 x 900或1080p)
  • 集成隔行/去隔行
  • 从SDI转换为DVI / HDMI / DisplayPort,反之亦然
  • 被动环出
  • SDI音频嵌入和去嵌入
  • 与所有Draco tera矩阵兼容
  • 丰富的冗余选项
  • 冗余互连链路(可选)
  • 与Draco vario机箱系列兼容

规格

Draco vario SDI (486系列)
视频接口

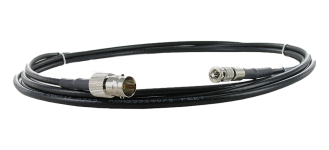

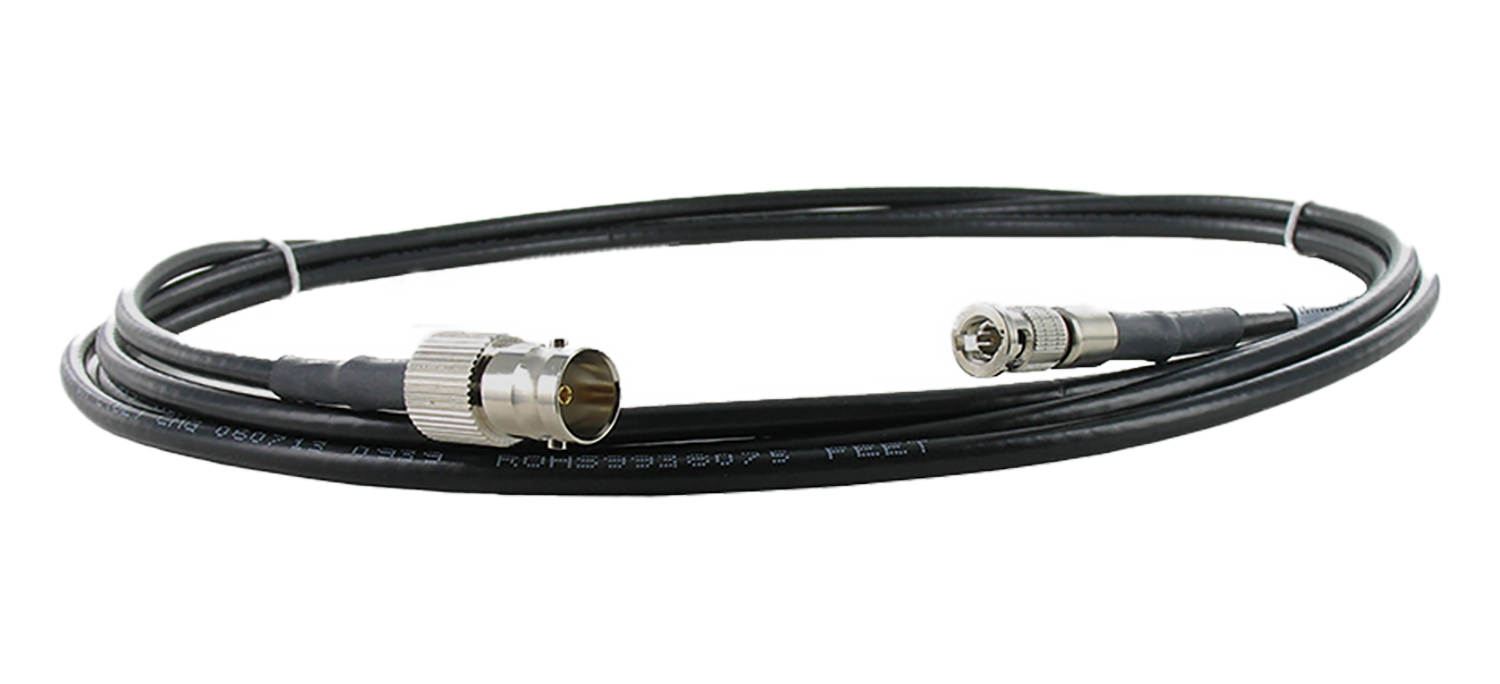

Micro-BNC
最大支持的SDI分辨率
1920 x 1080 @ 60 Hz
信号格式
A级(3GA),B级(3GB)
色彩深度
SDI 4:2:2(10位)
KVM 4:4:4(8位/真彩色)
音频
2声道音频(可选)
SFP
双输入SFP模块(Micro-BNC)
双输出SFP模块(Micro-BNC)
输入/输出SFP模块(Micro-BNC)
最大传输距离
Cat X 140 m
多模光纤1 km(OM3)
单模光纤(9µ)10 km
耗电量
每单位最大1,500 mA

零件号

零件号

Draco vario SDI (486系列)

All Variations

ImageModell:Description

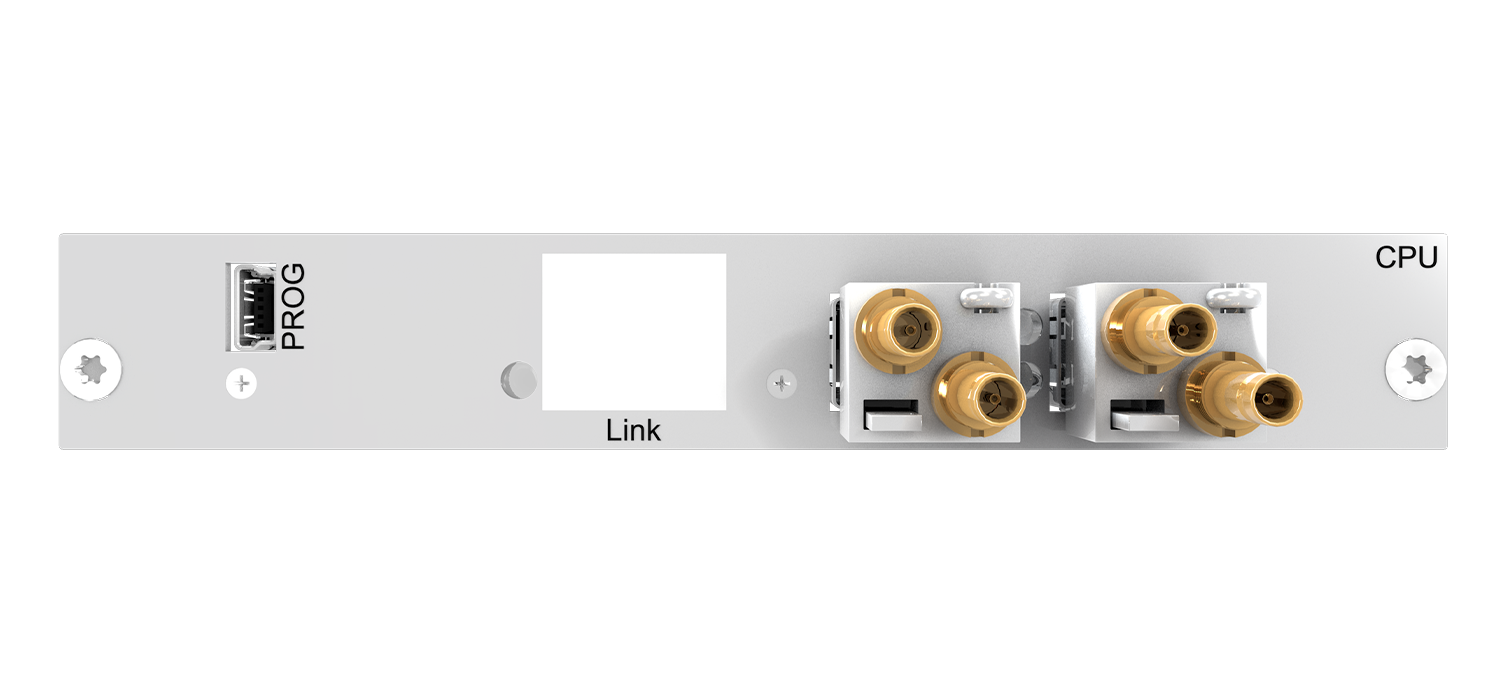

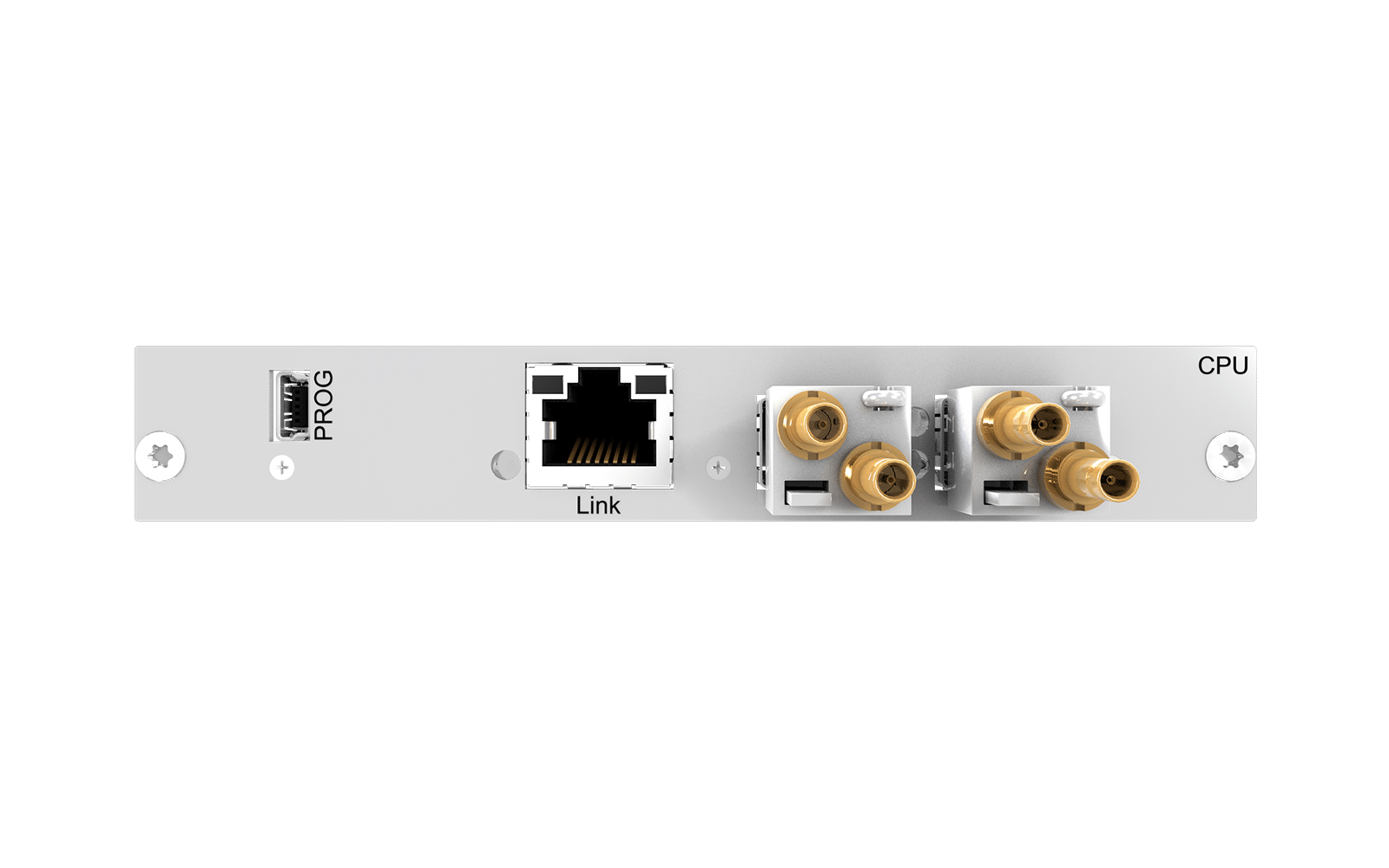

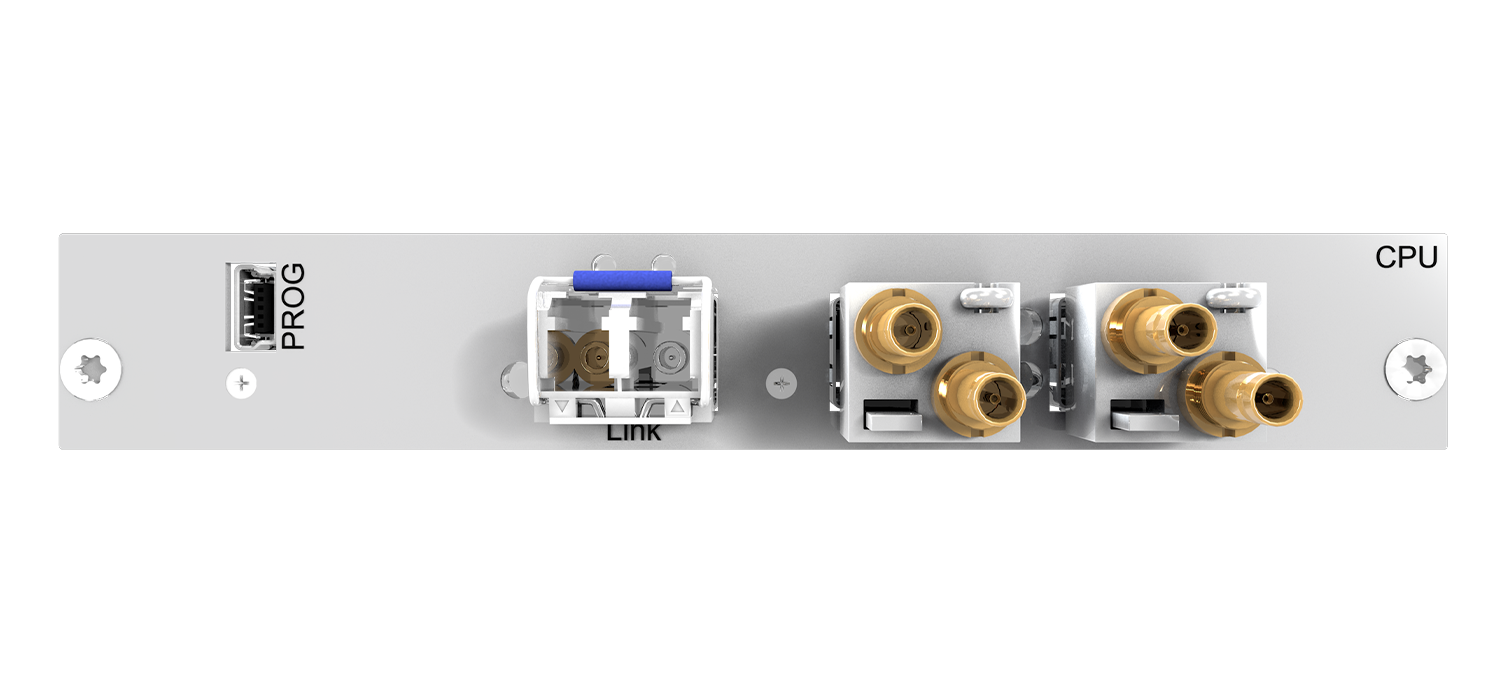

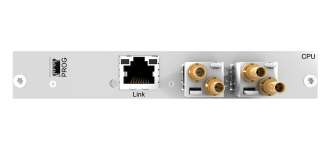

L486-BSDCCPU模块,1个Cat X,1个SDI接口

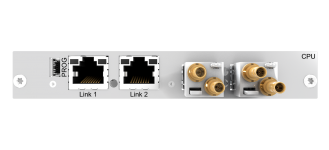

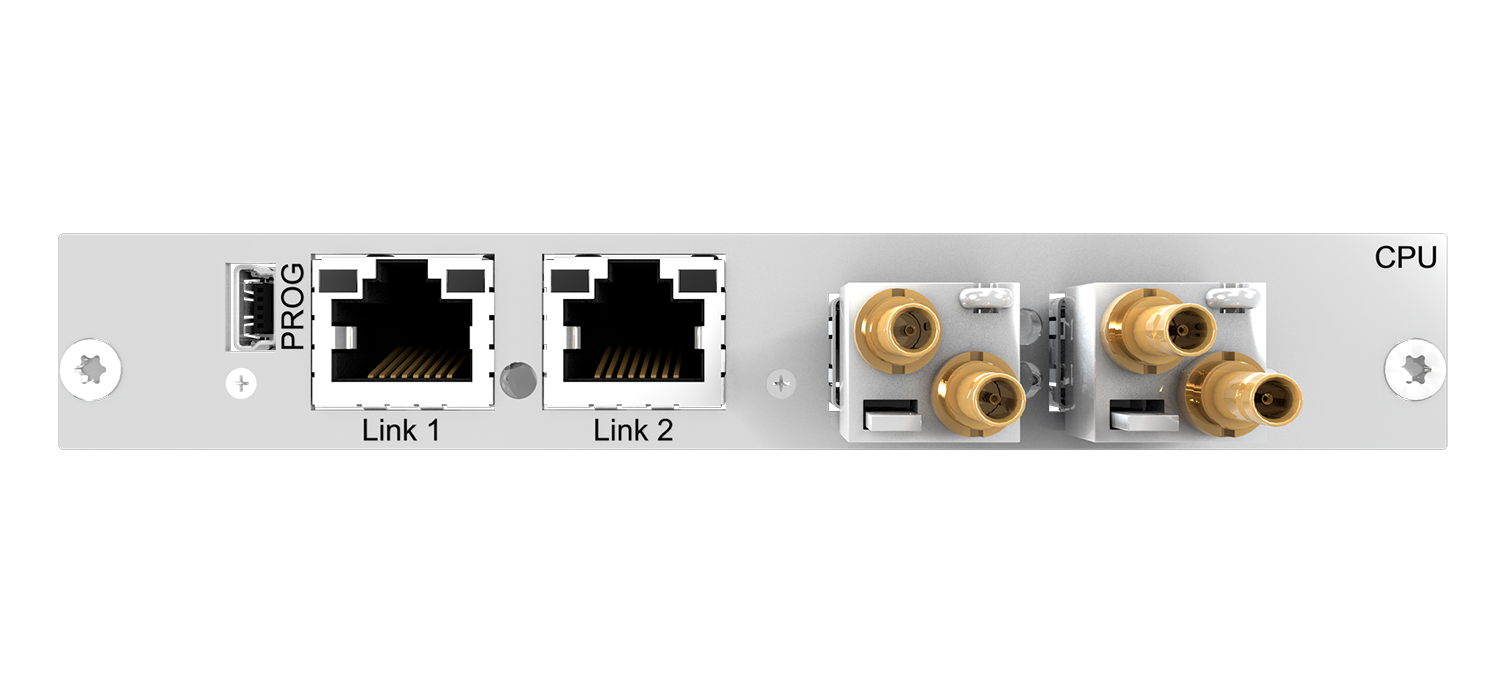

L486-BSDCRCPU模块,2个Cat X(冗余),1个SDI接口

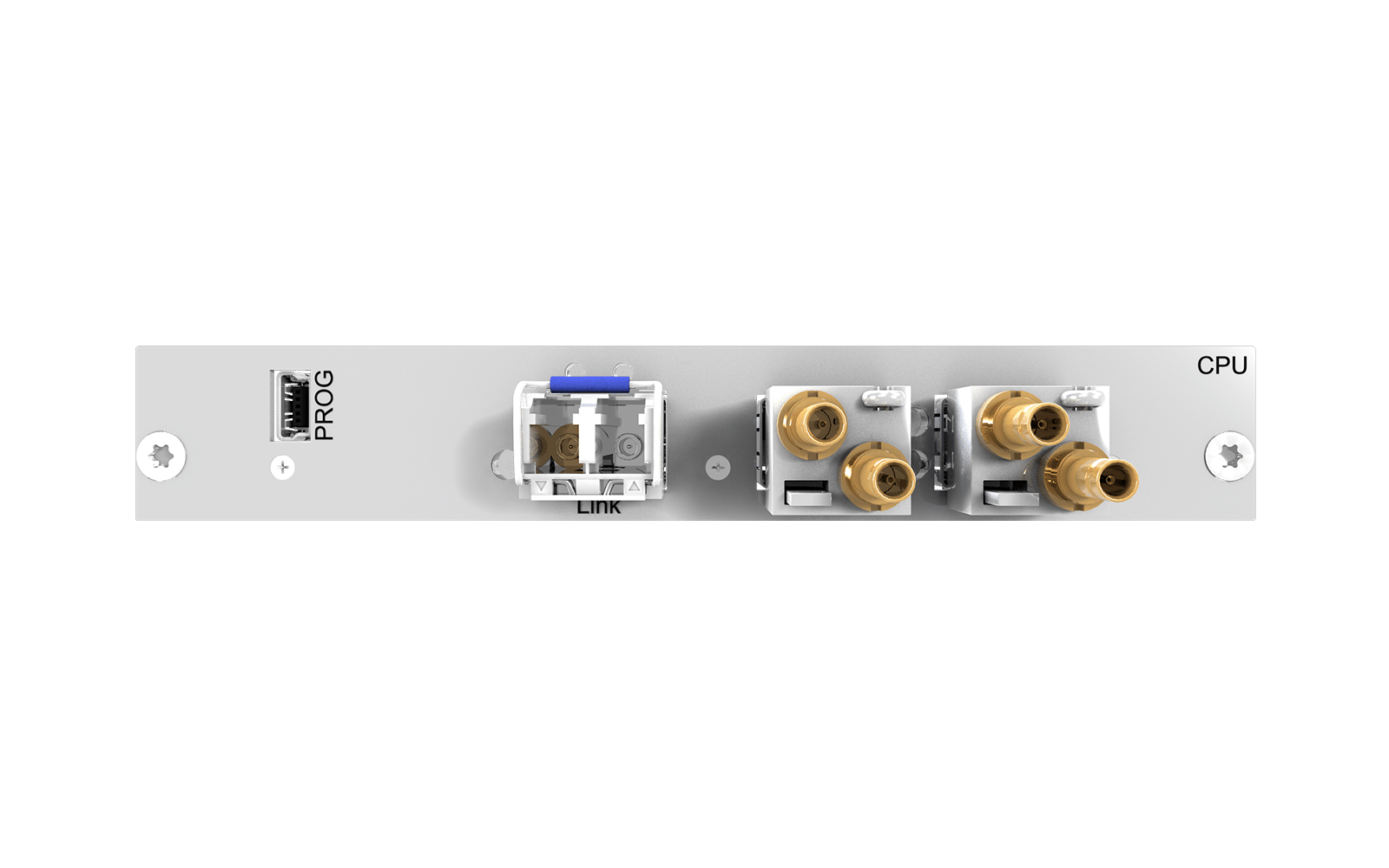

L486-BSDSCPU模块,1个光纤,1个SDI接口

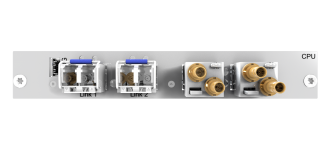

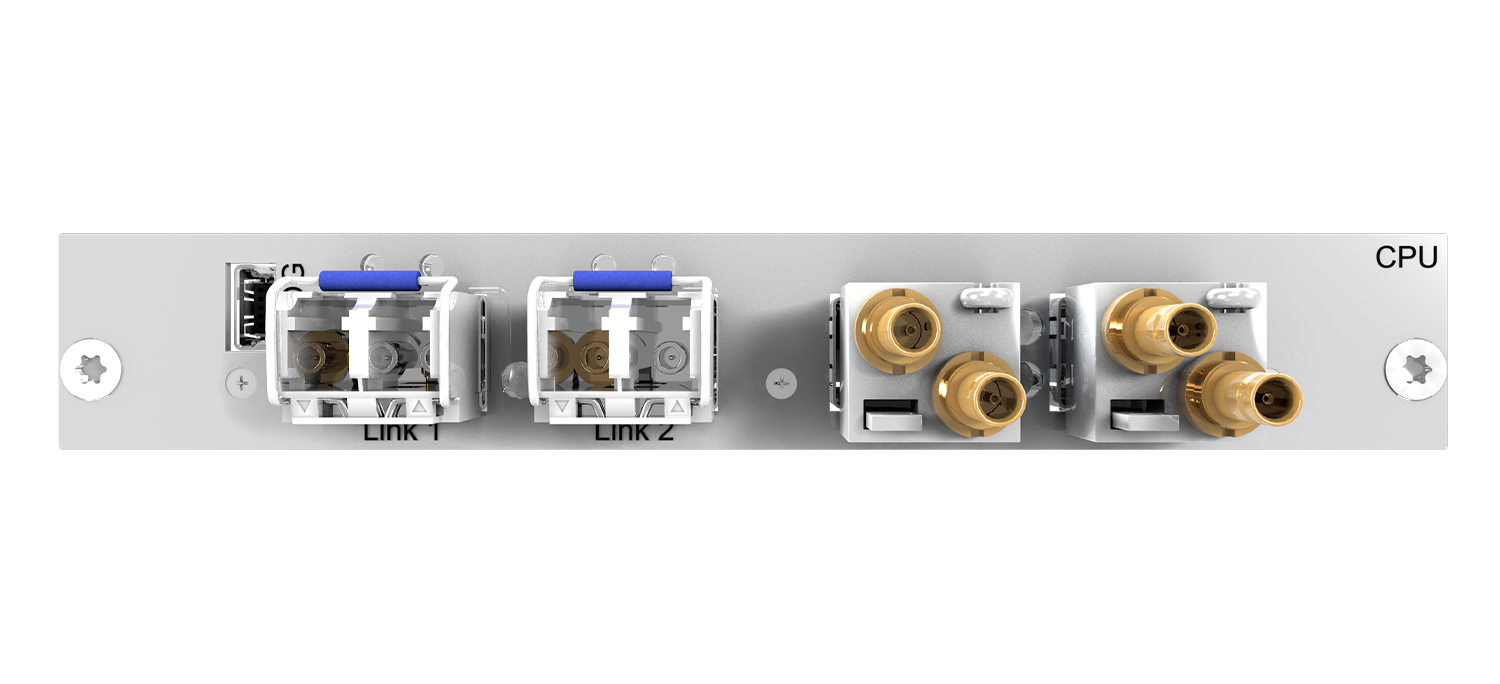

L486-BSDSRCPU模块,2个光纤(冗余),1个SDI接口
L486-BSDX根据要求定制

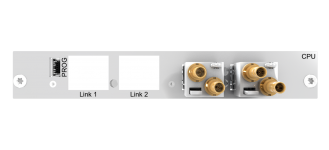

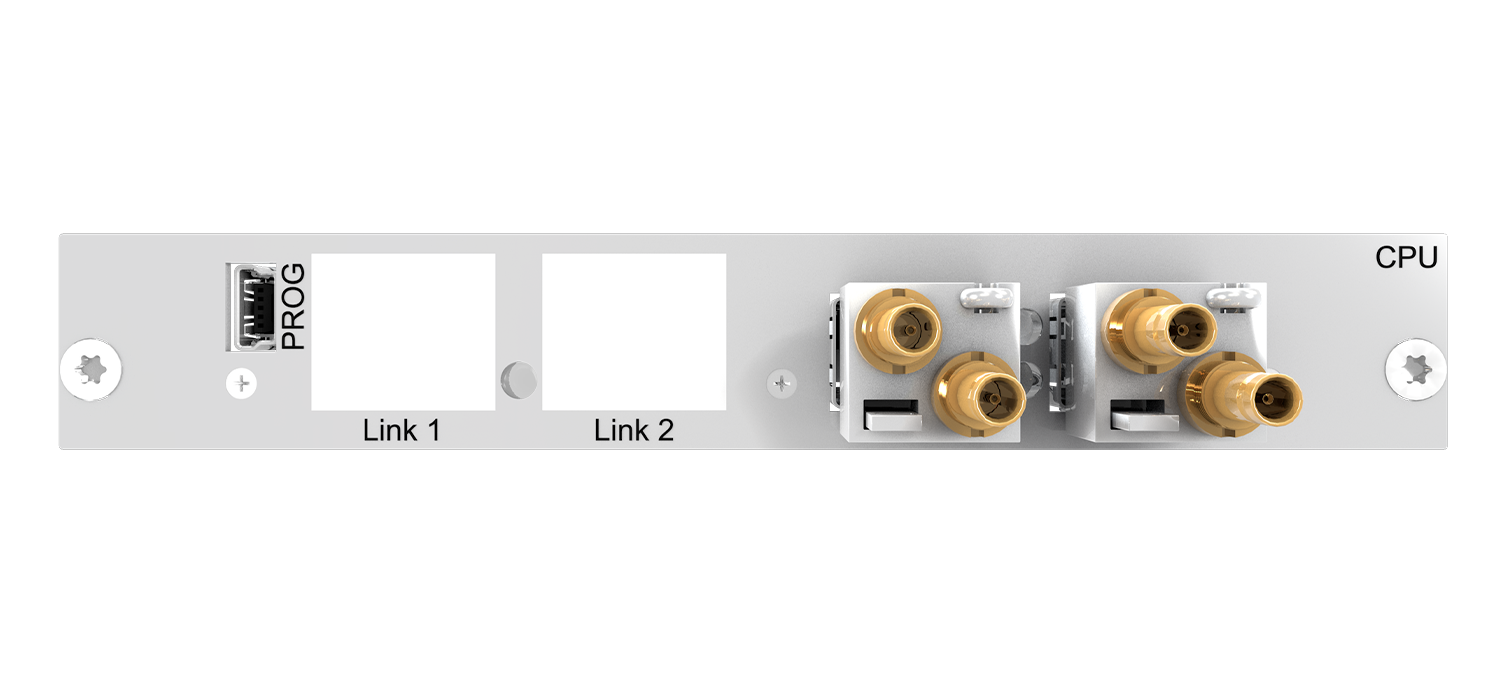

L486-BSDXR根据要求定制

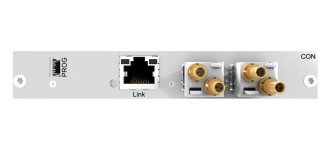

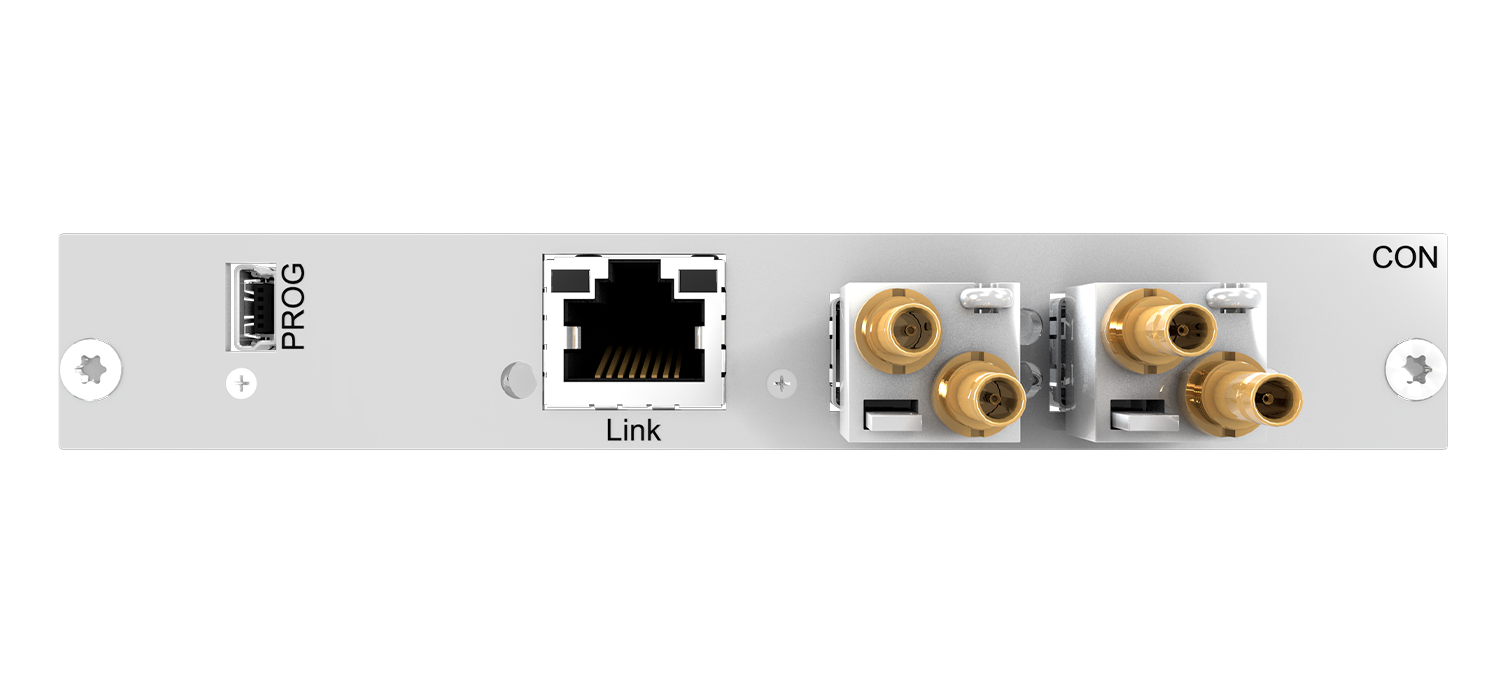

R486-BSDCCON模块,1个Cat X,1个SDI接口
R486-BSDSCON模块,1个光纤,1个SDI接口

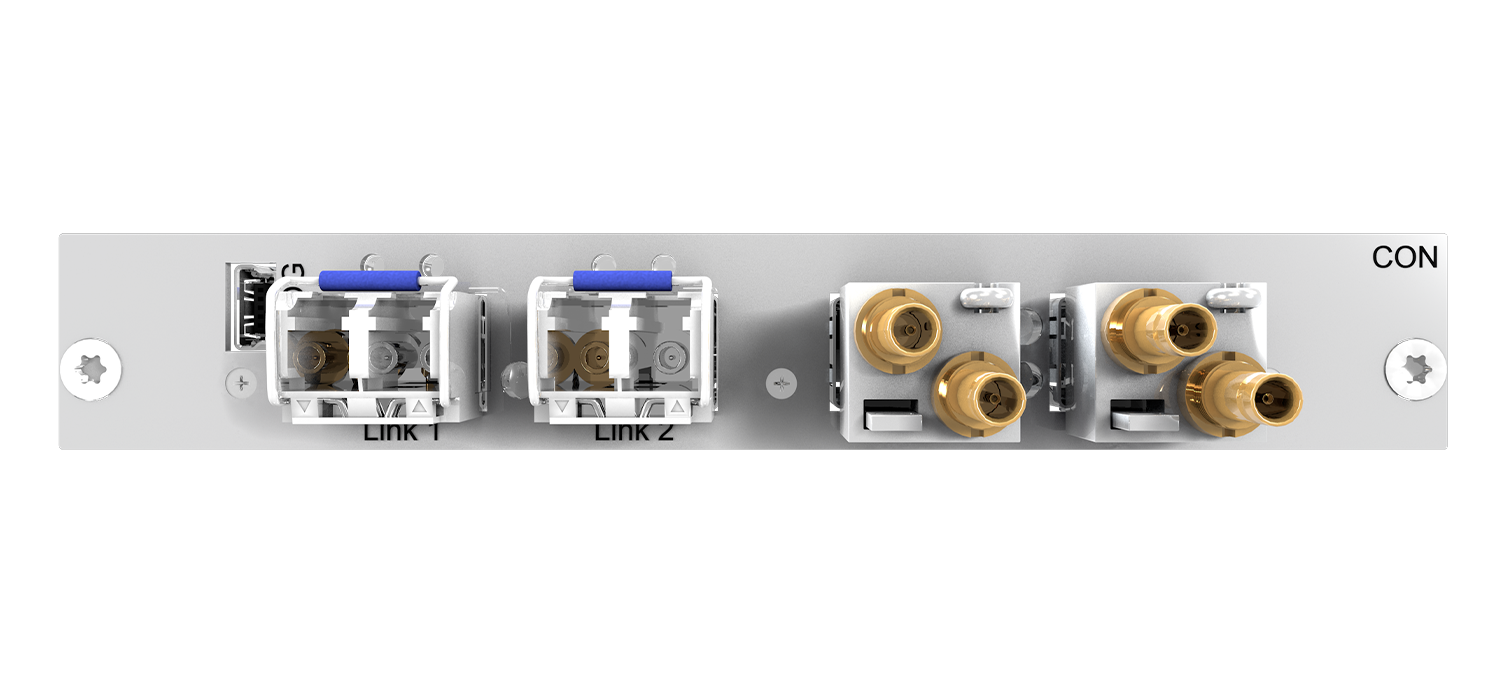

R486-BSDSRCON模块,2个光纤(冗余),1个SDI接口
R486-BSDCRCON模块,2个Cat X(冗余),1个SDI接口
R486-BSDX根据要求定制
R486-BSDXR根据要求定制

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

R477-1S4CA
CON Modul, 1x Cat X, 1x DVI-D Monitor, Single-Link, 4x USB-HID, Analog-Audio

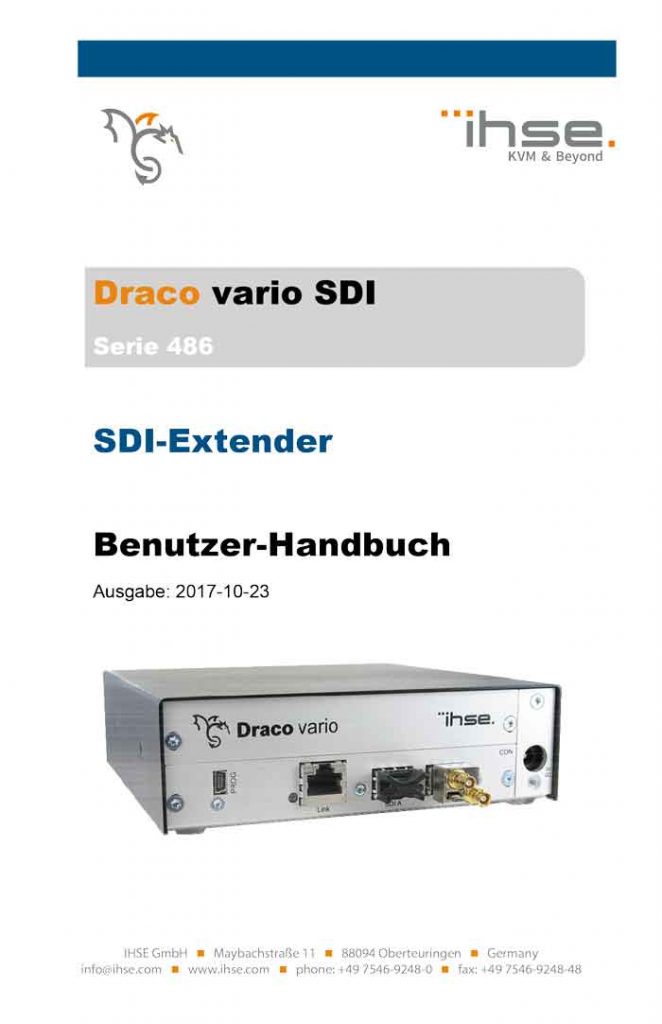

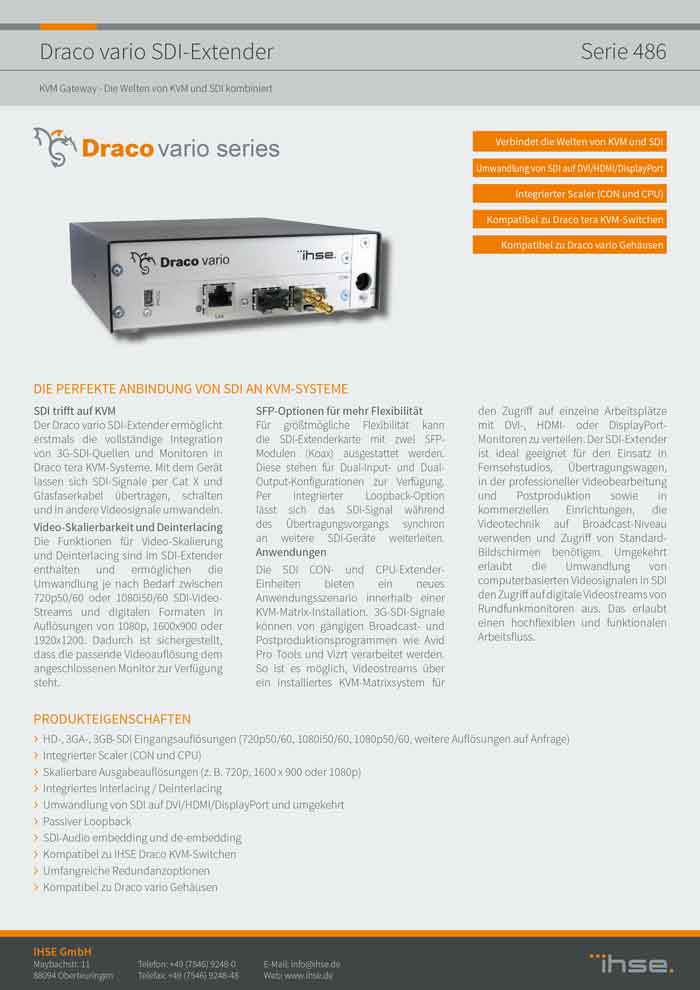

资料下载

Draco vario SDI (486系列)

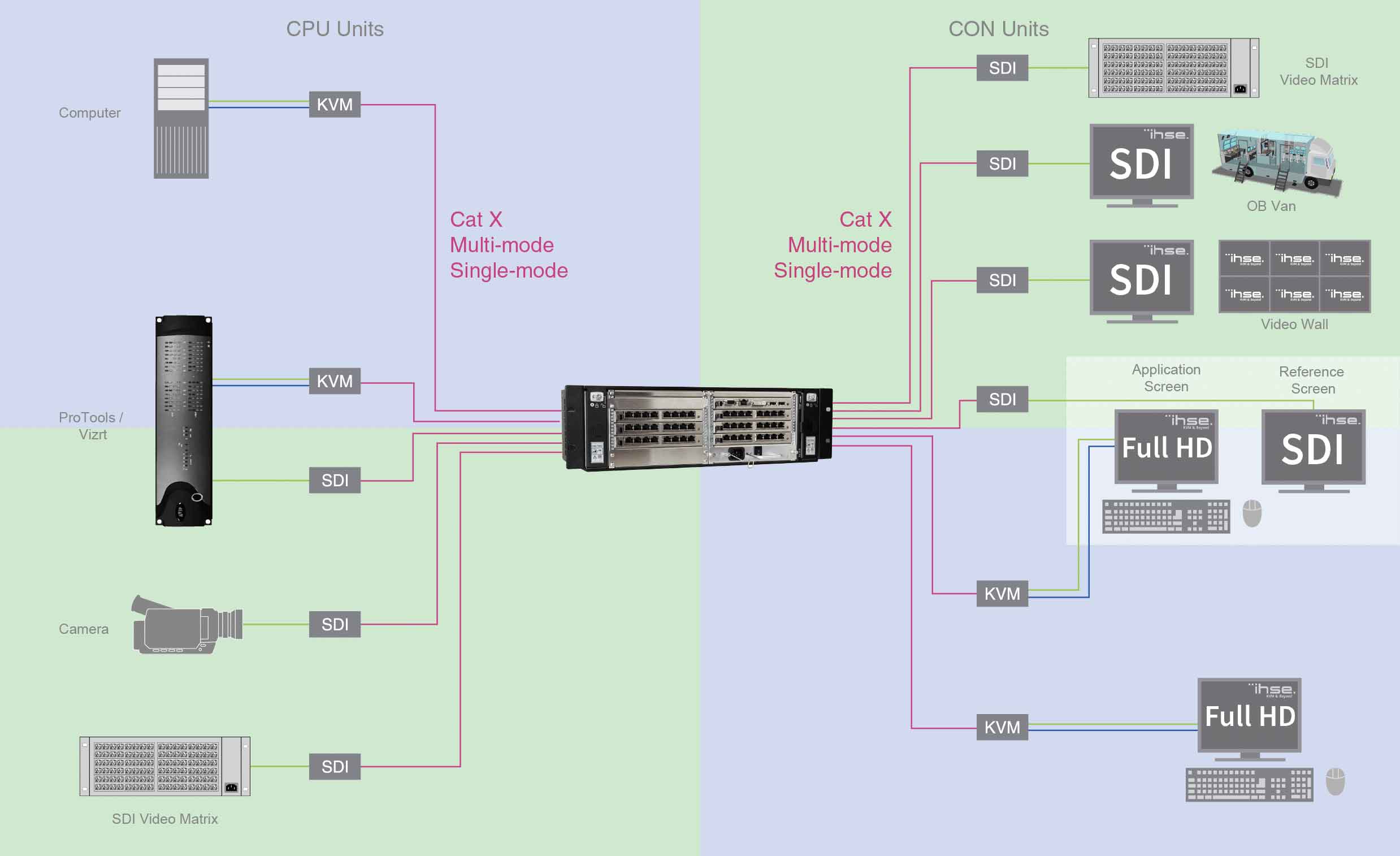

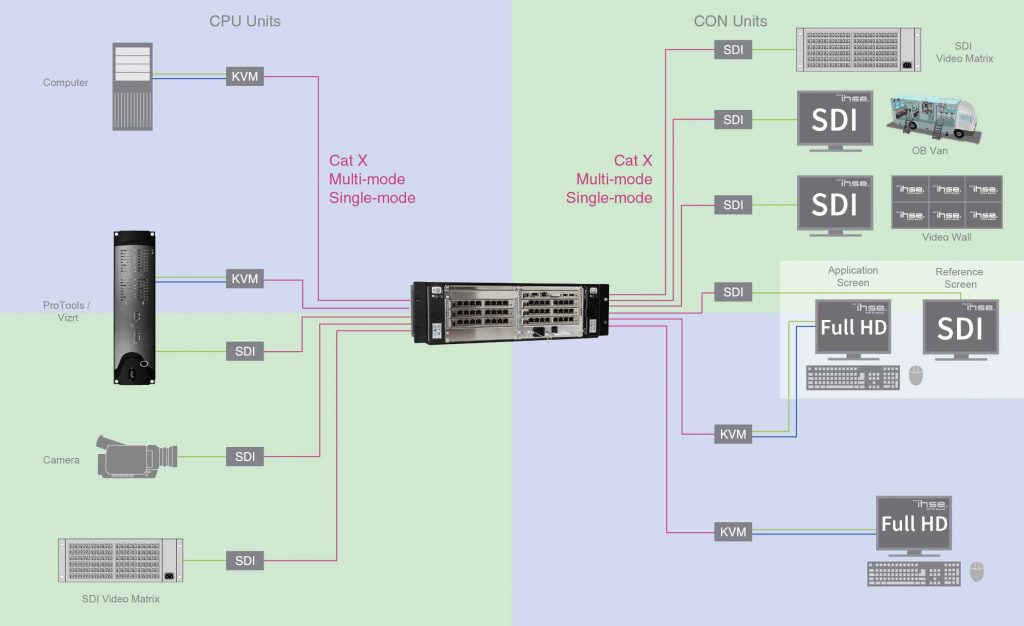

系统图
